How good are your GD&T skills??
Presented by Engineer Essentials - Creators of GD&T Basics
Take the GD&T Quiz Now
press
Enter ↵
Question 1
1

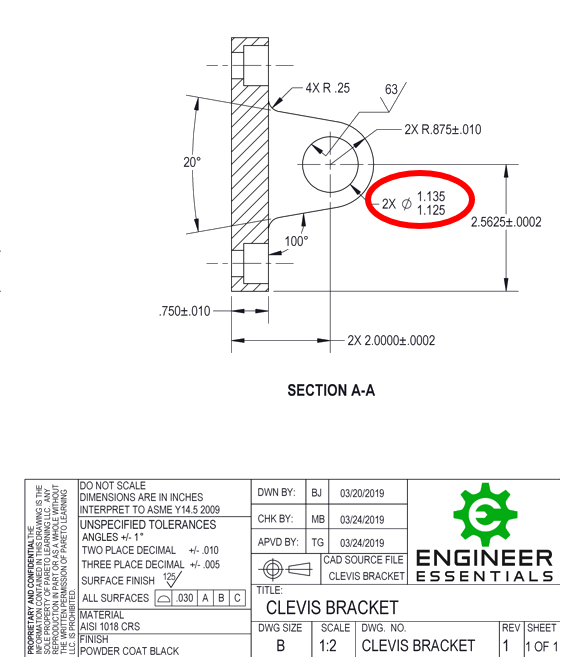

Based on Rule #1, how Straight do these two bores have to be? More specifically, how much “bow” can there be along the axis?
This question is required.
*
Key
A
.005 of Straightness error (Bow)
Key
B
.020 of Straightness error (Bow)
Key
C
.010 of Straightness error (Bow)
Key
D
Straightness or Bow is not being controlled on this print in any way
